<spec sheet>
| nputs | 1 USB: On a USB Type–C female connector |
| Outputs | 1 HDMI: On a female HDMI connector1 DisplayPort: On a female DisplayPort connector |

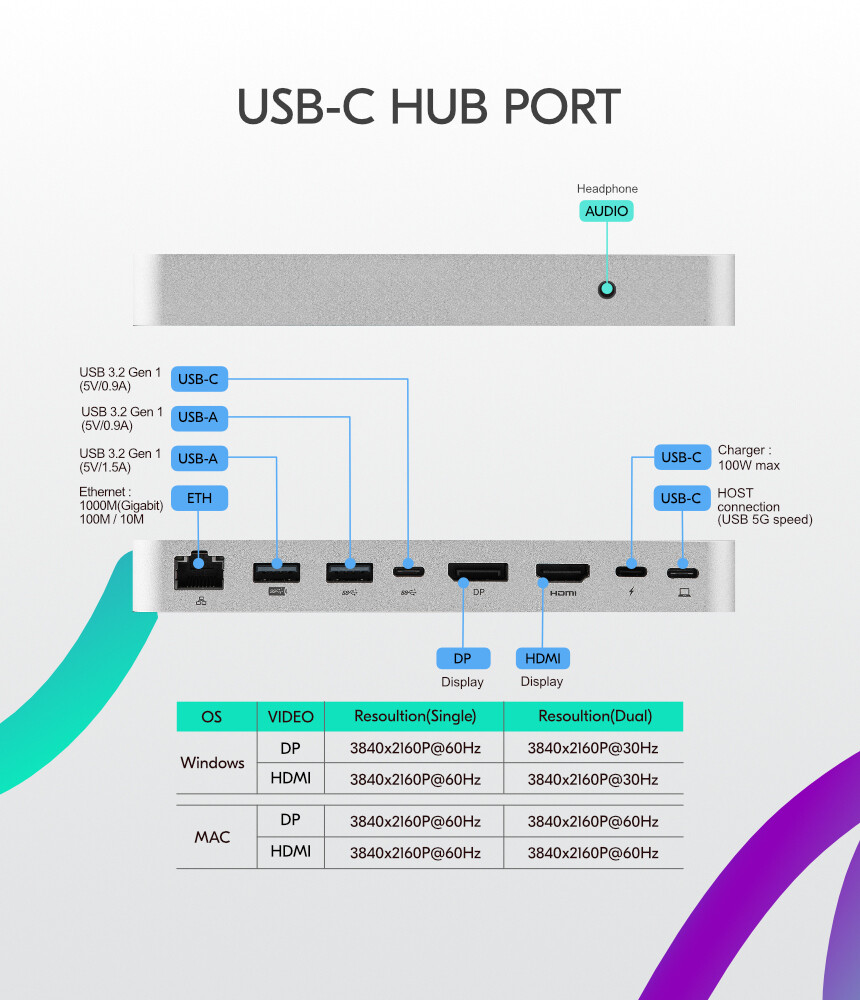

| Ports | 1 USB 3.2 Gen 1: On female USB type–A connectors (5V/1.5A)1 USB 3.2 Gen 1: On female USB type–A connectors (5V/0.9A)1 USB 3.2 Gen 1: On female USB type–C connectors (5V/0.9A)1 Ethernet: On an RJ–45 connector (10/100/1000)1 3.5 mm Headset Jack: For audio and Microphone1 USB: On a female USB type–C connector for charging (100W max)1 USB: On a female USB type–C connector for host connection |
| Video | Windows MST Mode Max. Resolution: 3840x2160P@60Hz, when a single display is attached to the deviceWindows MST Mode Max. Resolution: 3840x2160P@30Hz, when two displays are attached to the deviceMAC OS SST Mode Max Resolution: 3840x2160P@60Hz, when a single or dual display is attached to the device |
| Extended Ethernet | Max Data Rate: 1000M (Gigabit)/100M/10MIncludes: Wake–on–LAN (WoL), single Mac address, PXE boot |
| General | 1 USB 3.2 Gen 1 Data Transmission Speed: Up to 5.0Gbps |
| Power | Delivery: 100WUSB Charging: BC1.2 (5V 1.5A)USB Limited Current when Connected to Power via female USB-C port: 1.9AUSB Limited Current when Not Connected to Power via female USB-C port: 1A |
| Environmental Conditions | Operating Temperature: 0° to +70°C (32° to 158°F)Storage Temperature: –10° to +55°C (14° to 131°F) |
| Enclosure | Type: Aluminum |
| Regulatory Compliance (Standards Compliance) | Safety: CEEnvironmental: RoHs, FCC |
| BALANCED LINE LEVEL INPUT | PRODUCT DIMENSIONS: 27.5cm x 25cm x 3.5cm (10.8" x 9.8" x 1.4") W, D, H |
| PRODUCT WEIGHT | 1.1kg (2.4lbs) approx |
| SHIPPING DIMENSIONS | 32cm x 27cm x 5.8cm (12.6" x 10.6" x 2.3") W, D, H |
| SHIPPING WEIGHT | 1.4kg (3.1lbs) approx |

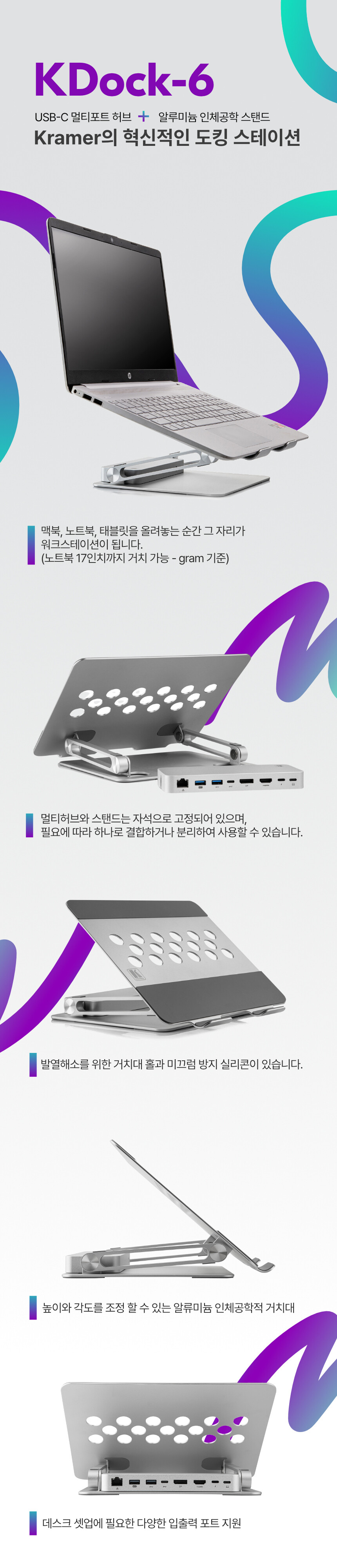

KDock-6
504,000원
630,000원
수량
주문 수량
0개
총 상품 금액
0원
